High Stability
Automatic Calibration
Variable Spot
Automatic Closed Loop Control System

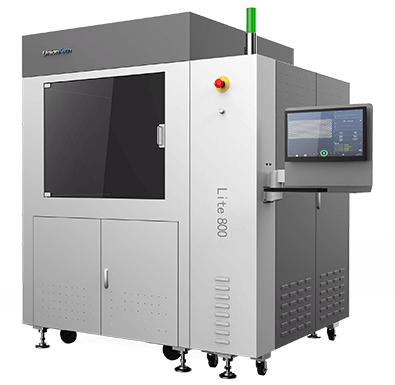

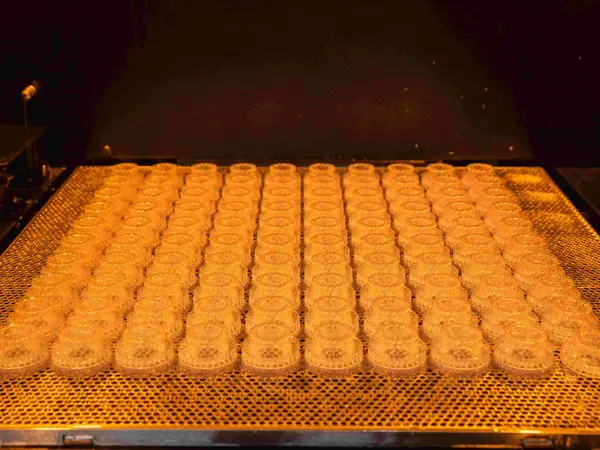

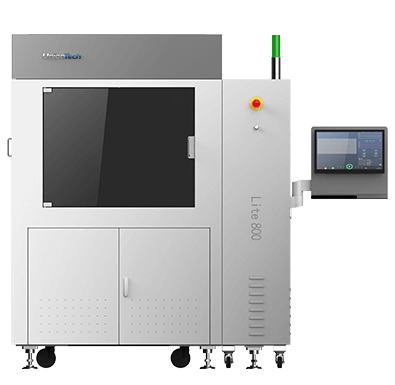

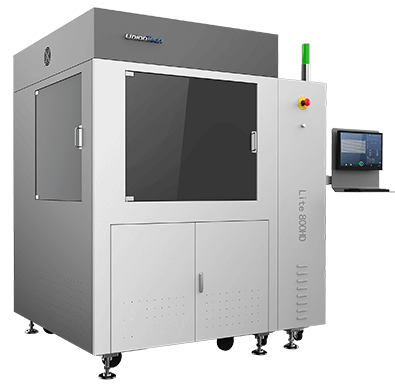

Lite800 is an affordable large-format professional SLA 3D printer, compatible with a variety of 3D printing materials for large-batch printing. High efficiency, high precision, high stability. Using variable spot and split design to provide a one-stop solution for large-format integral printing, small-format for large-batch printing.
| Build Volume |
800 × 800 × 550 mm 31.5 × 31.5 × 21.7 in |
| Accuracy |
Dimension <100 mm: ±0.15 mm Dimension ≥100 mm: ±0.15% x Dimension |
| Layer Thickness | 0.07-0.25 mm |
| Laser |
355 nm, solid-state frequency tripled Nd: YVO₄ |
|
Beam Focus |
Dynamic & Variable |
| Beam Size | 0.12-0.8 mm |
| Scanning Speed | 8-15 m/s |
| Control Software | UnionTech™ RSCON |
| Operation System | Windows 10 |
| Data Interface | .stl |
| Network |
Ethernet, IEEE802.3, TCP/IP |
| Electrical Requirements | 200-240 VAC, 50/60 Hz, Single phase |
| Rated Power | 2.8 kVA |
| Systems Control | Closed-loop |
| Temperature Range | 72–79 °F (22–26 °C) |
| Maximum Change Rate | 1 °C/hour |
| Relative Humidity | < 40% |
| Resin Vat | Replaceable / Fixed |
| Machine Dimensions |
1555 × 1445 × 2215 mm 61.22 x 56.89 x 87.21 in |
| Machine Weight | 1050 kg |
Consult with your sales representative for confirmation of current offering.
