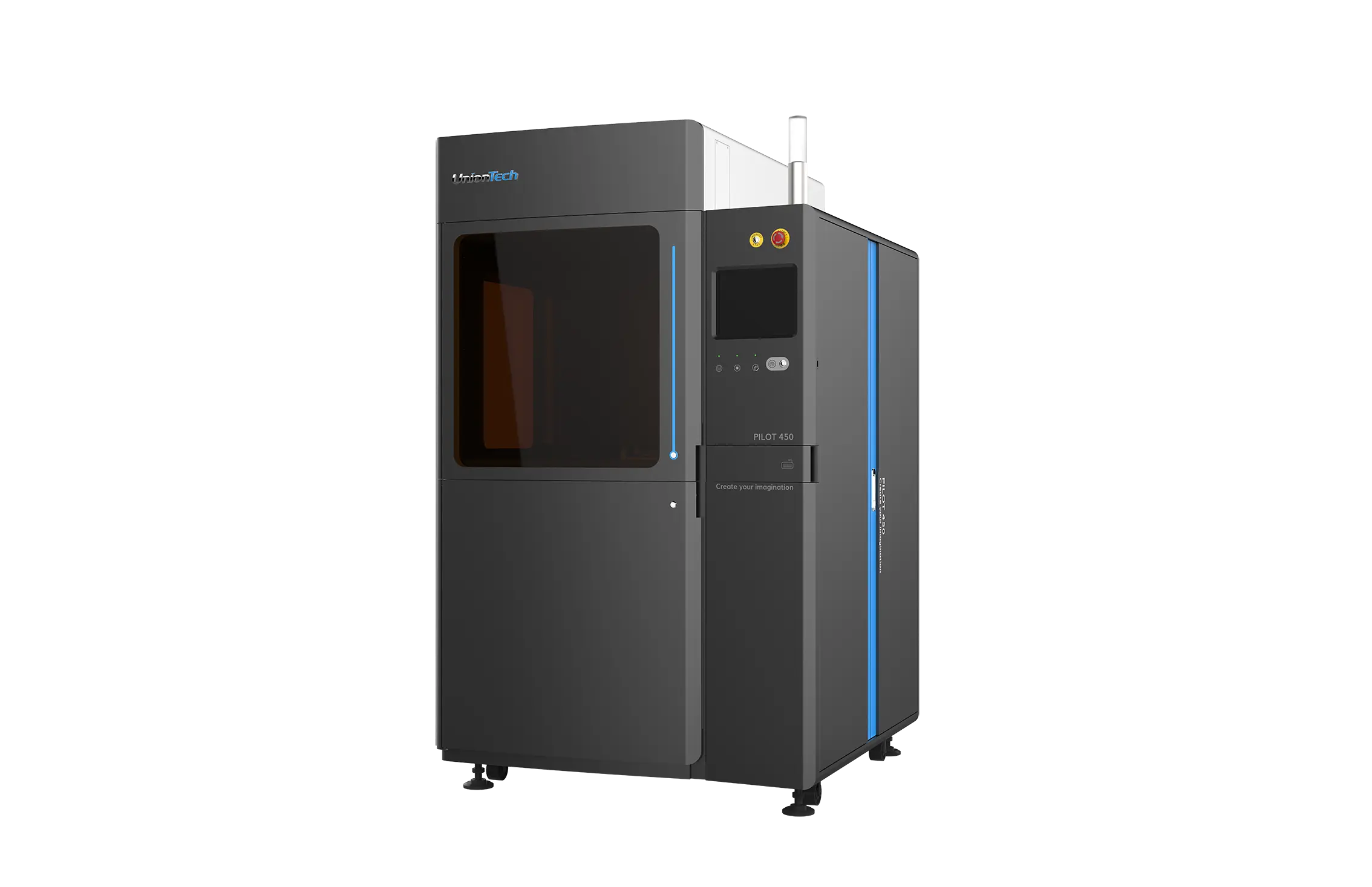

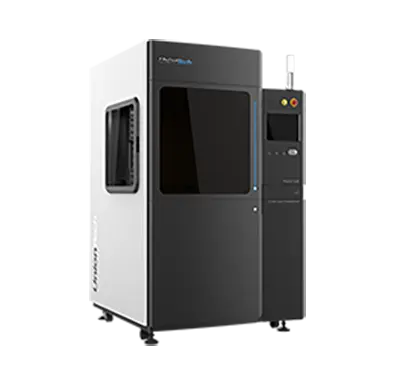

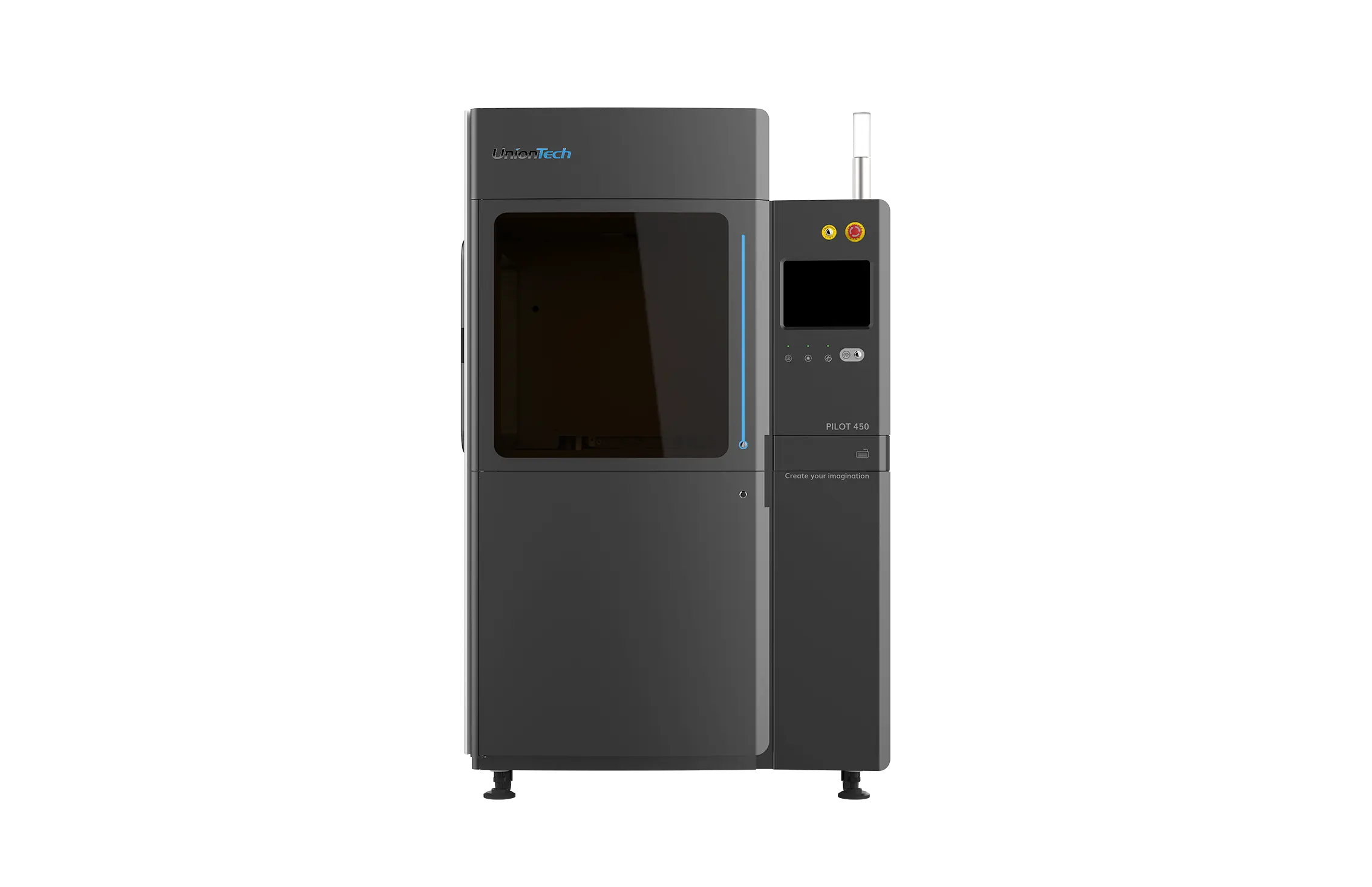

PILOT 450 Industrial SLA 3D Printer

  • Industrial SLA 3D printing technology

  • Practical build capacity of 450 × 450 × 400 mm

  • Industry-leading print quality, speed and precision

  • 3D printing software for file preparation and production

  • Compatible with a variety of 3D printing materials

Pilot450

PILOT 450 Technical Data


Build Volume

450 × 450 × 400 mm

17.7 × 17.7 × 15.7 in

Accuracy

Dimension <100 mm: ±0.1 mm

Dimension ≥100 mm: ±0.1% x Dimension

Layer Thickness 0.05-0.25 mm
Laser

355 nm, solid-state frequency tripled

Nd: YVO₄

Beam Size 0.08-0.12 mm
Scanning Speed 6-10 m/s
Control Software UnionTech™ RSCON
Date Interface .stl
Network

Ethernet, IEEE802.3, TCP/IP

Rated Power 3.0 kVA
Systems Control Closed-loop
Temperature Range 22–26 °C (72–79 °F)
Relative Humidity < 40%
Resin Vat Replaceable
Machine Dimensions

1310 × 1290 × 2135 mm

51.58 x 50.79 x 84.06 in

Machine Weight 945 kg

Consult with your sales representative for confirmation of current offering.
