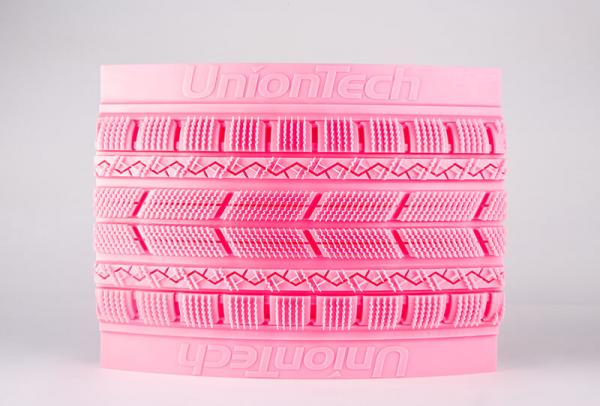

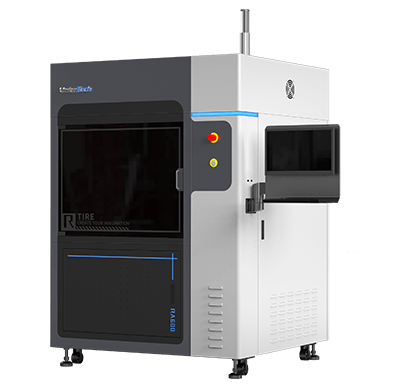

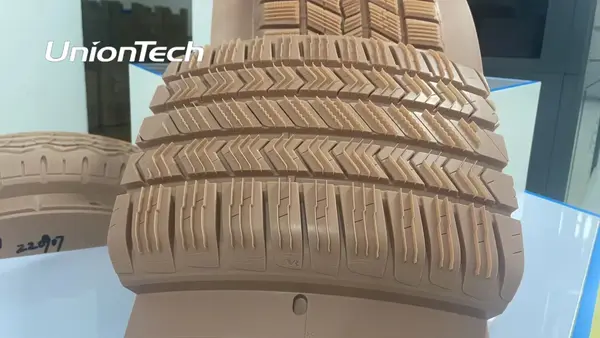

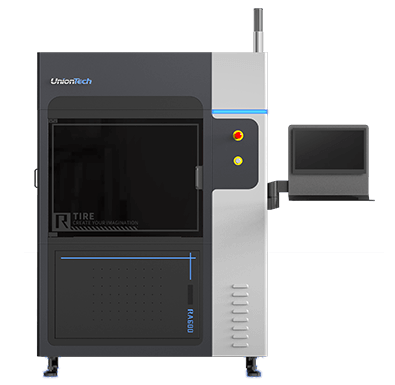

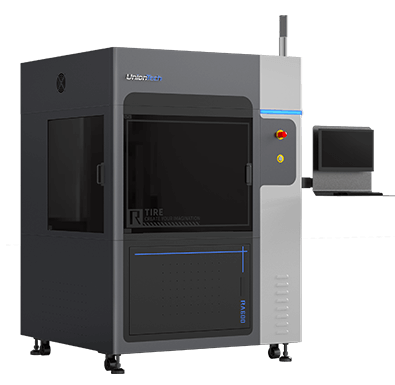

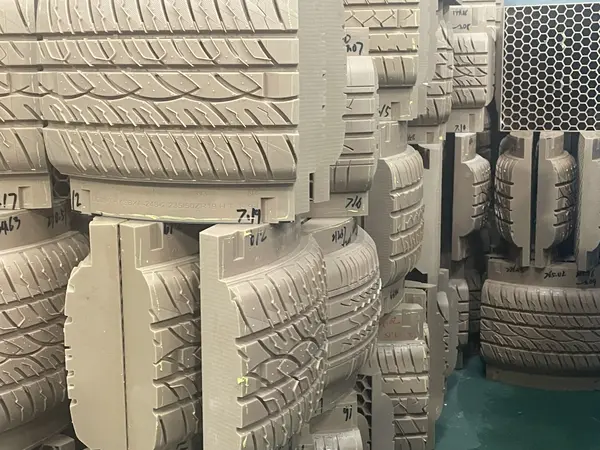

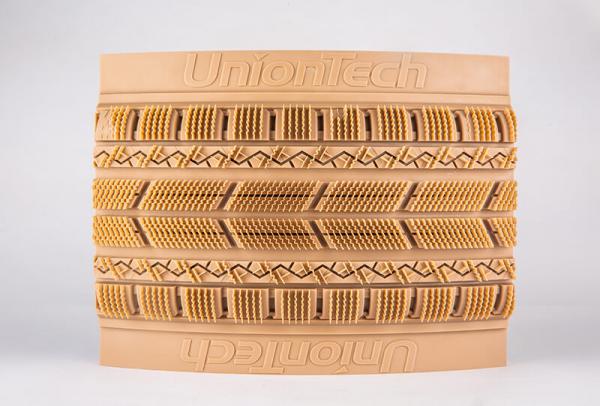

RA600 is made for tire molds, reproduces patterns perfectly, and it increases productivity while reducing expenses. Digital tire mold manufacturing based on 3D printing effectively shortens the lead time of the tire master mold and optimizes the process, reducing labor costs. The 3D printed tire master mold can present extremely difficult and complex patterns with a high precision of ± 0.1 mm.
| Build Volume | 600 × 600 × 400 mm
23.6 × 23.6 × 15.7 in |
| Accuracy | Dimension <100 mm: ±0.1 mm
Dimension ≥100 mm: ±0.1% x Dimension |
| Layer Thickness | 0.05-0.25 mm |
| Laser | 355 nm, solid-state frequency tripled
Nd: YVO₄ |
| Beam Focus | Dynamic & Variable |
| Beam Size | 0.12-0.8 mm |
| Scanning Speed | 8-15 m/s |
| Control Software | UnionTech™ RSCON |
| Operation System | Windows 10 |
| Data Interface | .stl |
| Network | Ethernet, IEEE802.3, TCP/IP |
| Electrical Requirements | 200-240 VAC, 50/60 Hz, Single Phase |
| Rated Power | 2.6 kVA |
| Systems Control | Closed-loop |
| Temperature Range | 72–79 °F (22–26 °C) |
| Maximum Change Rate | 1 °C/hour |
| Relative Humidity | < 40% |
| Resin Vat | Replaceable / Fixed |
| Machine Dimensions | 1375 × 1295 × 1930 mm
54.13 x 50.98 x 75.98 in |
| Machine Weight | 850 kg |
Consult with your sales representative for confirmation of current offering.
