Provide a one-stop solution for small-batch printing with high efficiency, accuracy and stability.
The size is smaller than the previous generation.
Reduced adjustment points and upgraded rack structure to improve equipment stability.
Factory auto-calibration reduces manual accuracy error and makes it easy to use.

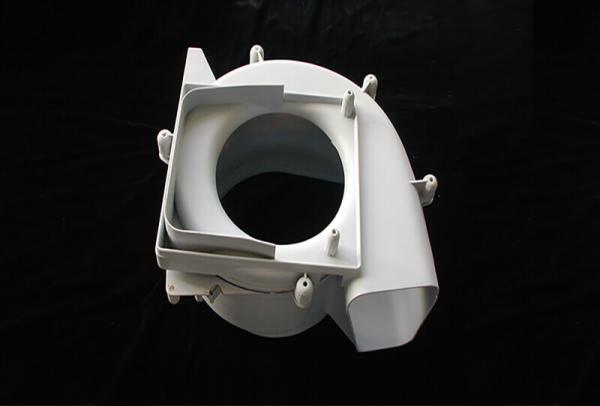

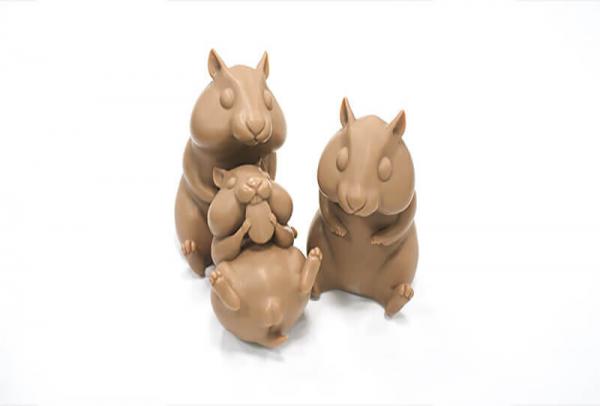

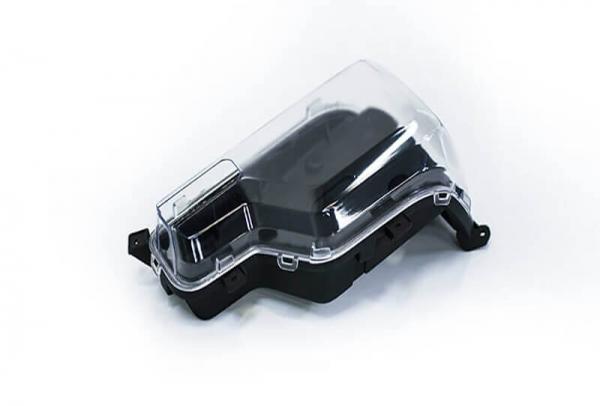

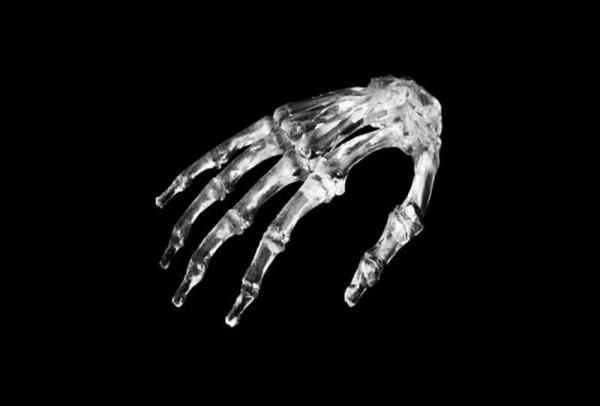

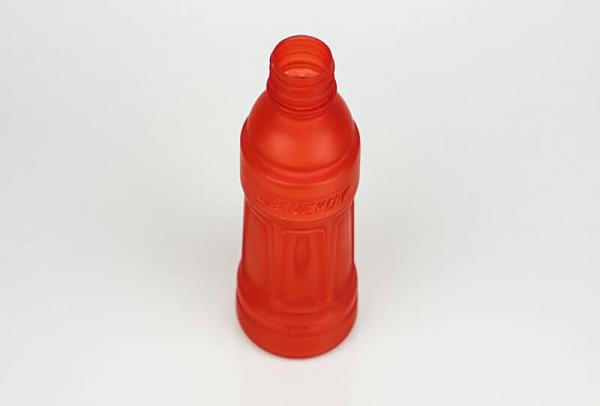

Fabricate beautiful, high-performance models, appliances, and prosthetics on a single printer with a wide range of rigorously tested 3D printing materials.
| Build Volume |
600 × 600 × 400 mm 23.62 × 23.62 × 15.75 in |
| Accuracy |
Dimension <100 mm: ±0.1 mm Dimension ≥100 mm: ±0.1% x Dimension |
| Layer Thickness | 0.05-0.25 mm |
| Laser |
355 nm, solid-state frequency tripled Nd: YVO₄ |
|
Beam Focus |
Dynamic & Variable |
| Beam Size | 0.12-0.8 mm |
| Scanning Speed | 8-15 m/s |
| Control Software | UnionTech™ RSCON |
| Operation System | Windows 10 |
| Date Interface | .stl |
| Network |
Ethernet, IEEE802.3, TCP/IP |
| Electrical Requirements | 200-240 VAC, 50/60 Hz, Single Phase |
| Rated Power | 2.6 kVA |
| Systems Control | Closed-loop |
| Temperature Range | 72–79 °F (22–26 °C) |
| Maximum Change Rate | 1 °C/hour |
| Relative Humidity | < 40% |
| Resin Vat | Fixed |
| Machine Dimensions |
880 × 1280 × 1895 mm 34.65 x 50.39 x 74.61 in |
| Machine Weight | 760 kg |
Consult with your sales representative for confirmation of current offering.
