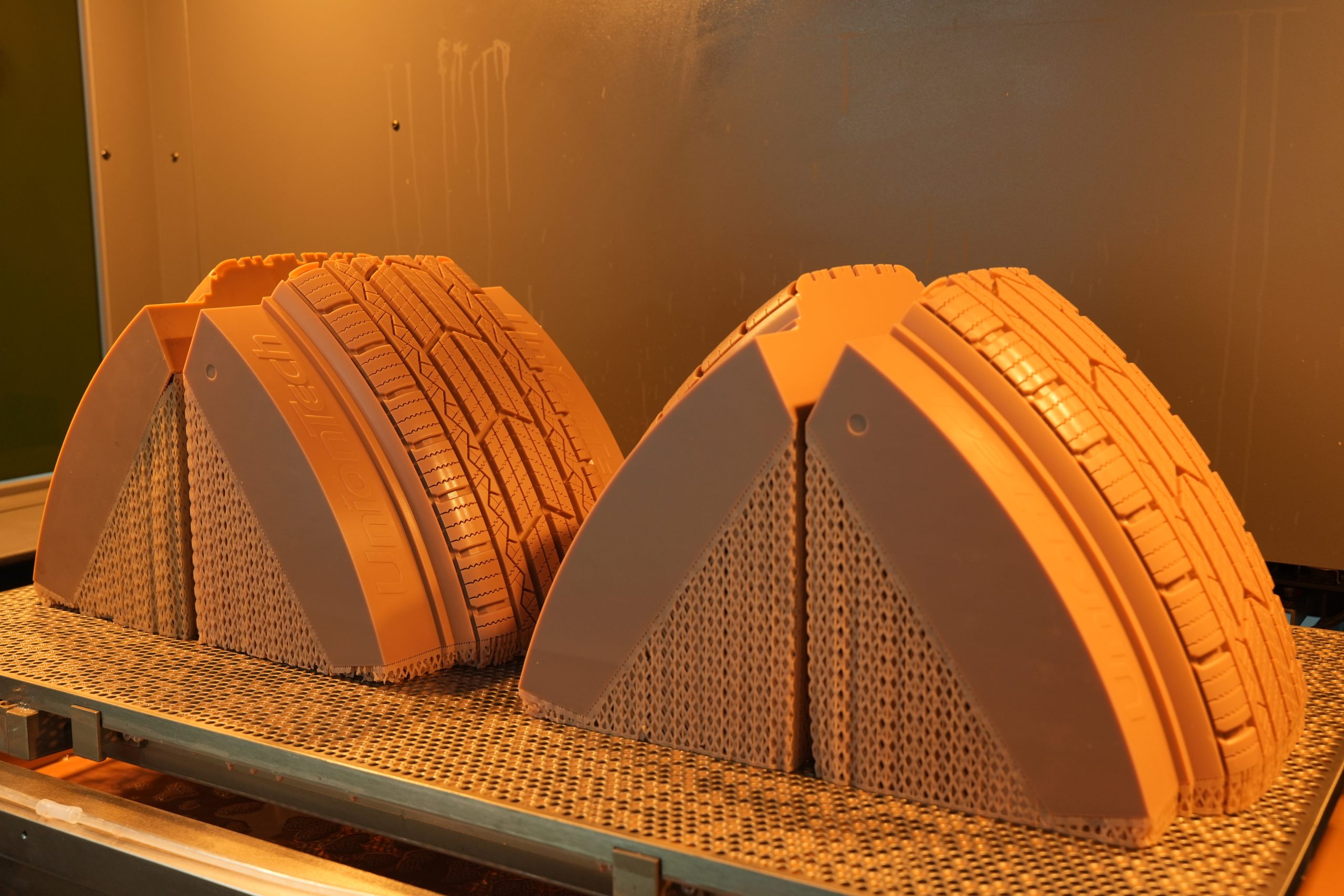

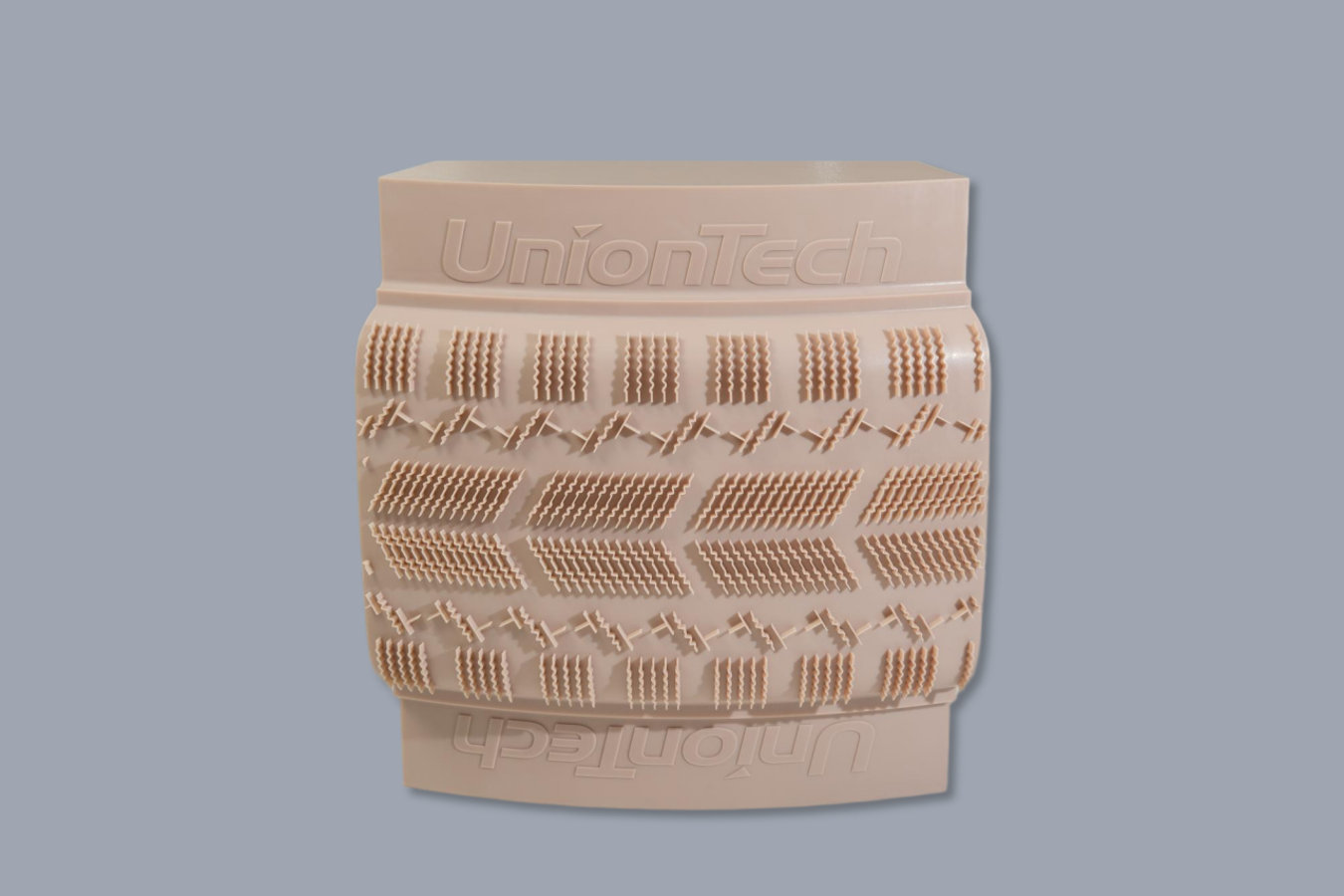

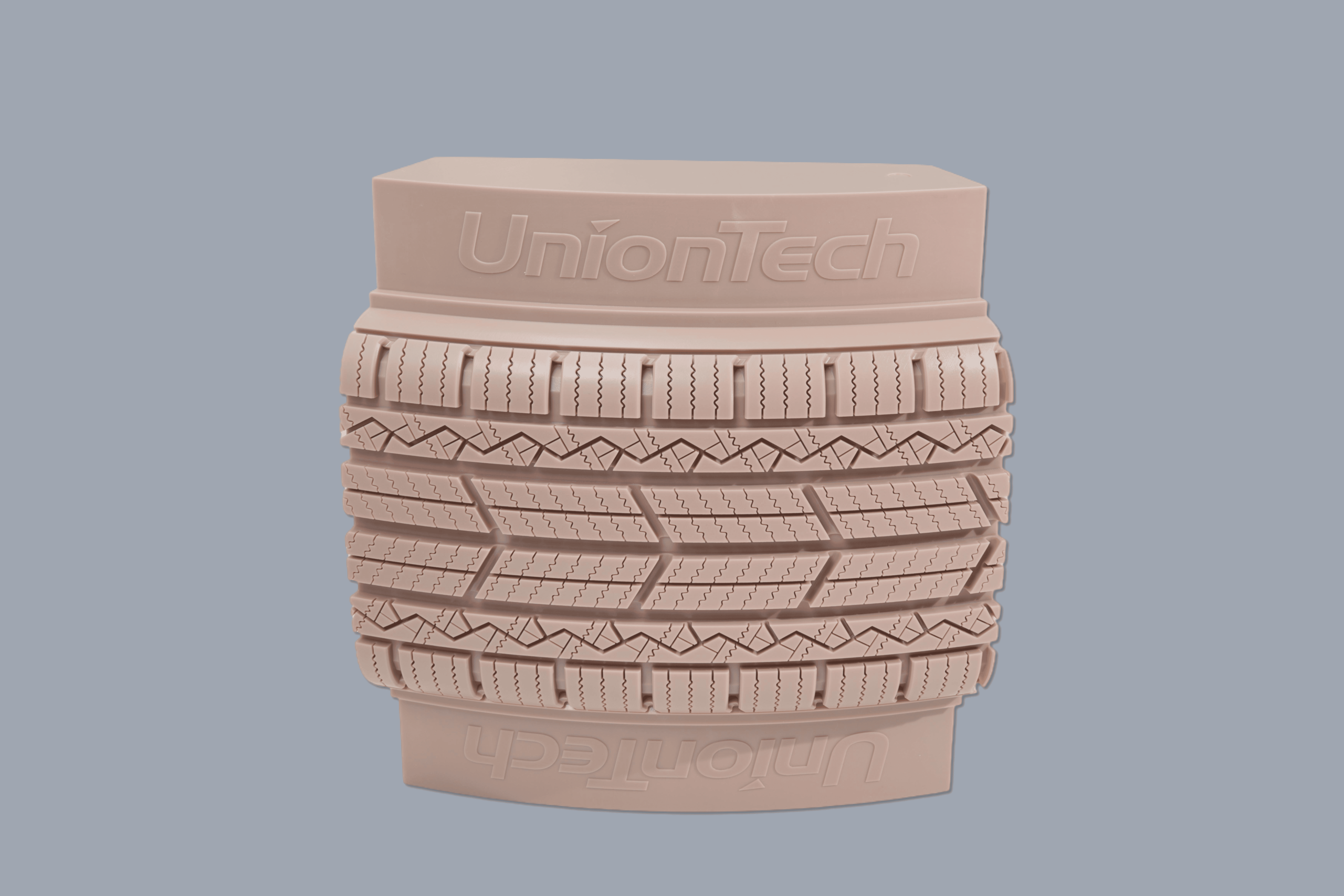

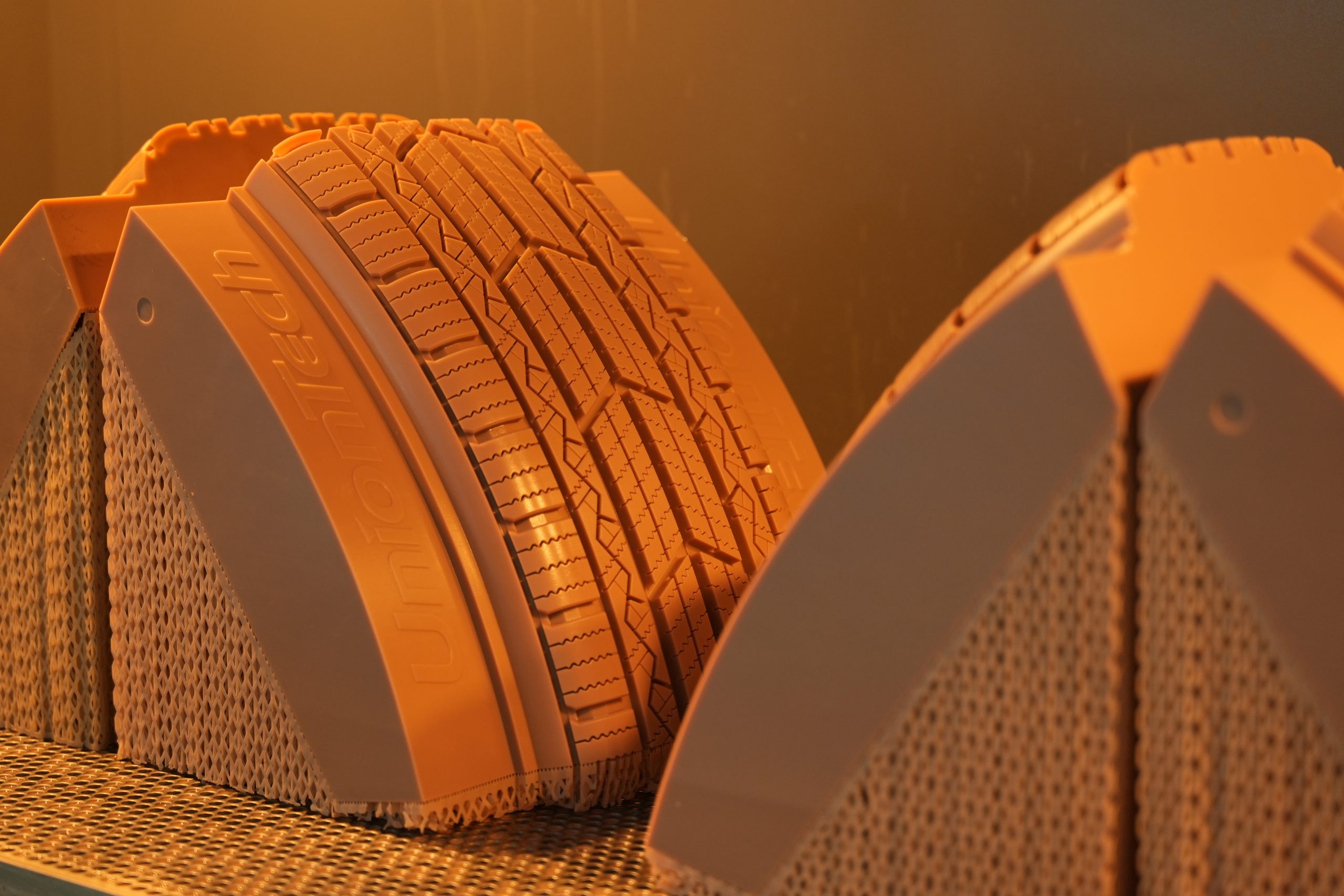

Ultra-fine printing: Surface roughness Ra < 3.5; roundness deviation≤ 0.05 mm; dimensional accuracy ±0.08 mm; point deviation < 95%; specially optimized for complex tire tread patterns

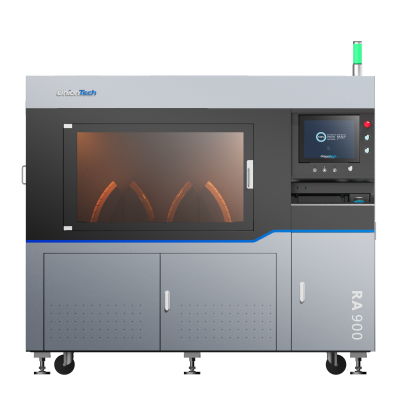

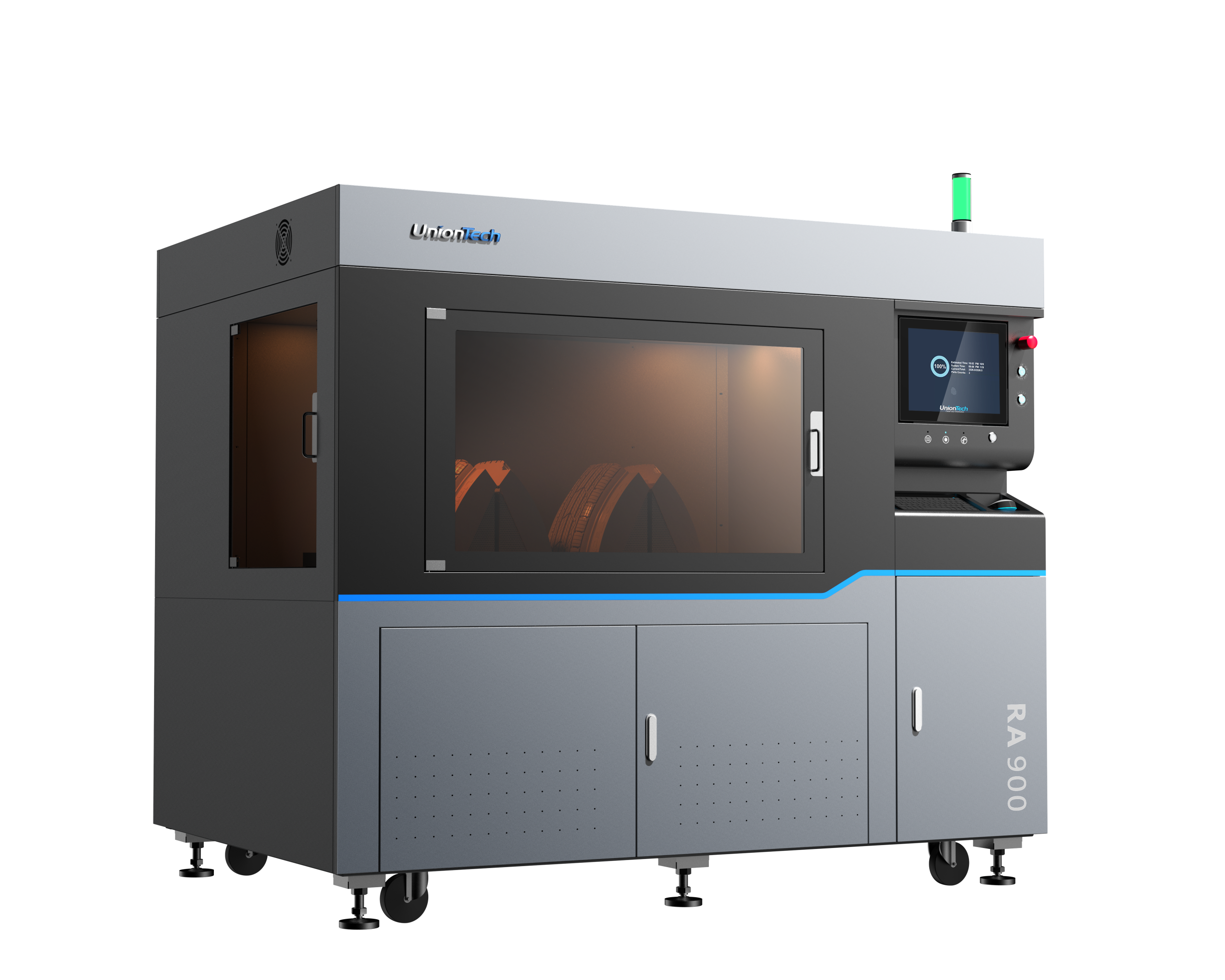

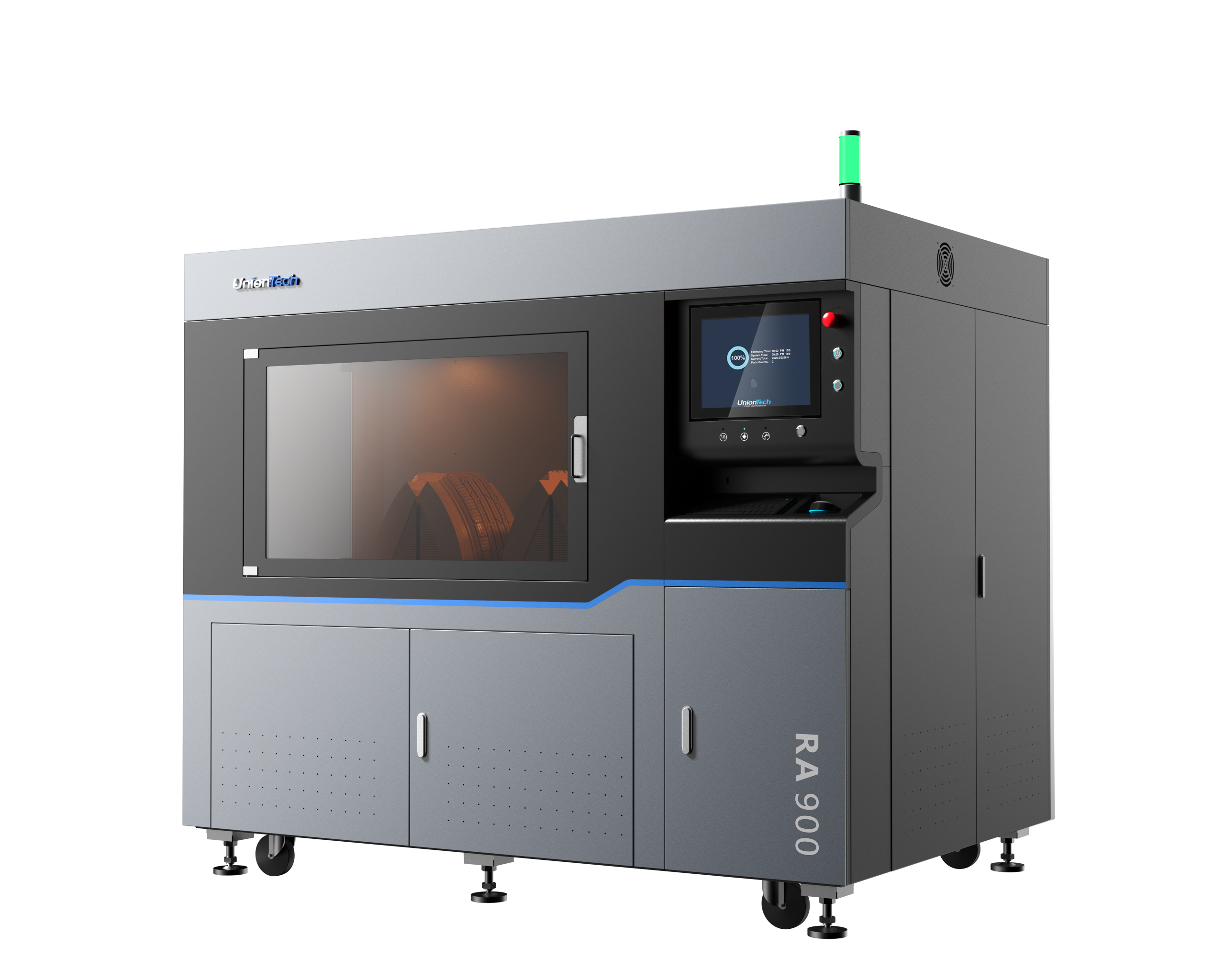

Efficient production: Dual-laser configuration with customized build volume (950 × 550 × 400 mm) for tire mold manufacturing, capable of printing 4 tire base molds simultaneously
Operational Stability: Yield in continuous operation > 95%; long-term operational stability due to a new enclosed optical path system

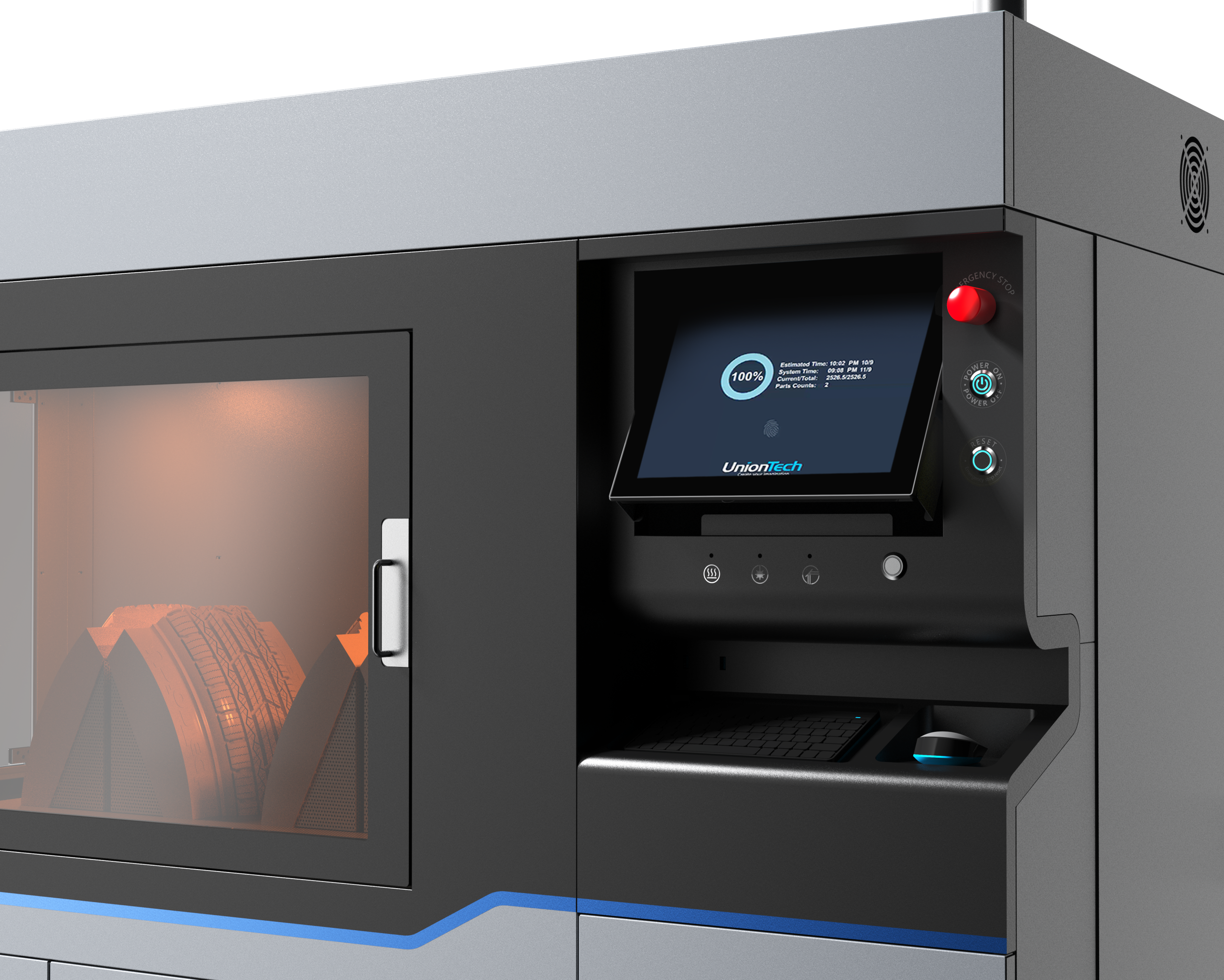

Intelligent operation: UT ONE – ‘One for All’ optimized printing processes: enable automatic sample placement and support generation, and intelligent production scheduling
| Build Volume | 950 × 550 × 400 mm |
| Layer Thickness | 0.05-0.25mm |
| Accuracy | L<100 mm： ±0.1 mm/ L ≥100 mm: ±0.1% x L; Dimensional Accuracy: ±0.08 mm |
| Laser | 2 Lasers, Solid-state Triple Frequency Nd:YVO4 |
| Beam Size | 0.07-0.85 mm |
| Scanning Speed | 6-18 m/s |
| Wavelength | 355 nm |
| Controlling Software | RSCON |
| Preprocessing Software | PolydevsPro, BPC |
| Operationg System | Windows10 |
| Date Interface | .stl |
| Electrical Requirements | 100-240 VAC, 50/60 Hz, 3.0 kVA |
| Temperature Range | 22 – 26 °C |
| Relative Humidity | < 40% |
| Resin Vat Capacity | 370 kg |
| Resin Vat Dimensions | 997 × 787 × 457 mm |
| Printer Dimensions | 2152 x 1445 x 1836 mm |
| Printer Net Weight | 1100 kg |
Consult with your sales representative for confirmation of current offering.
