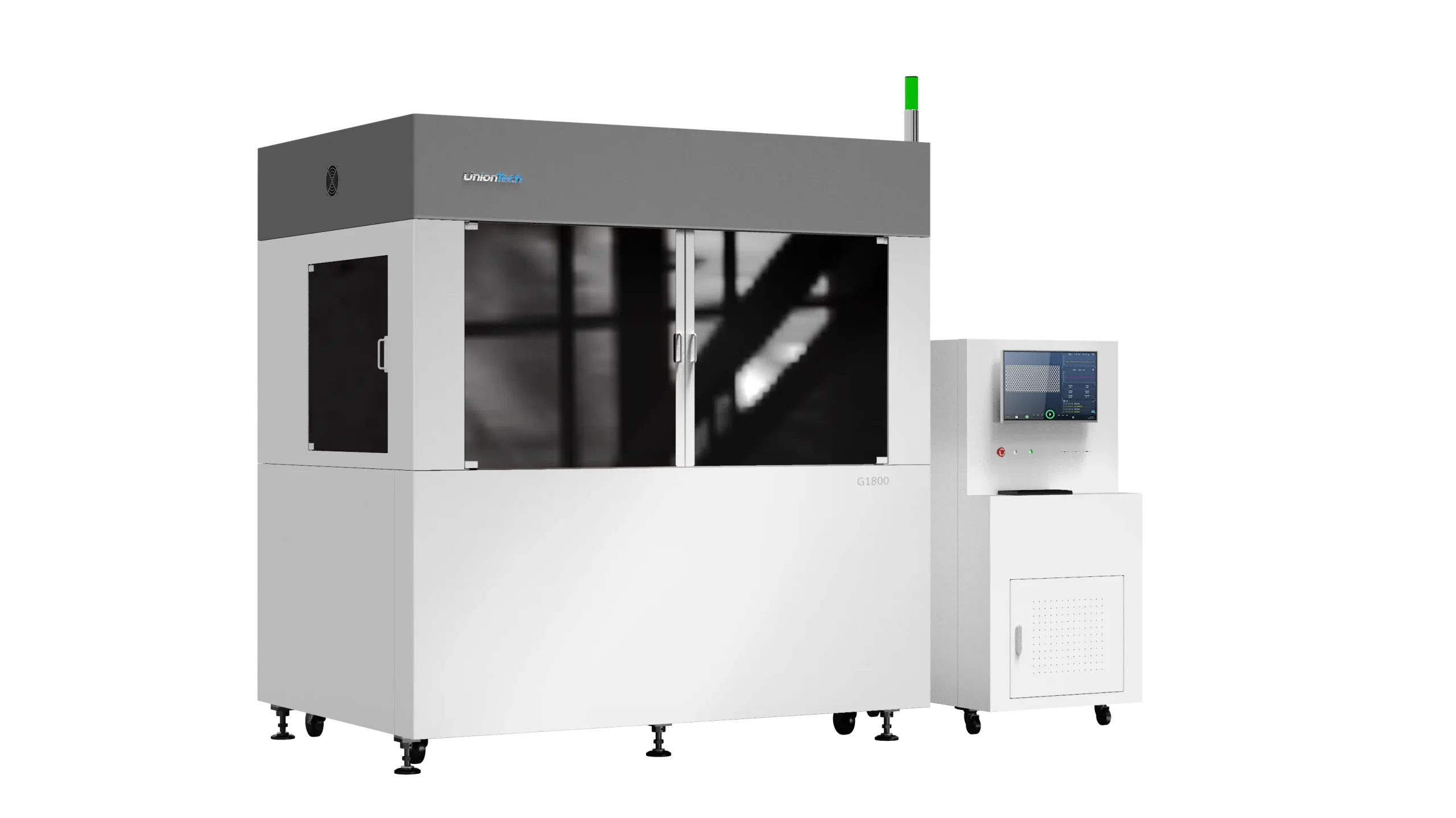

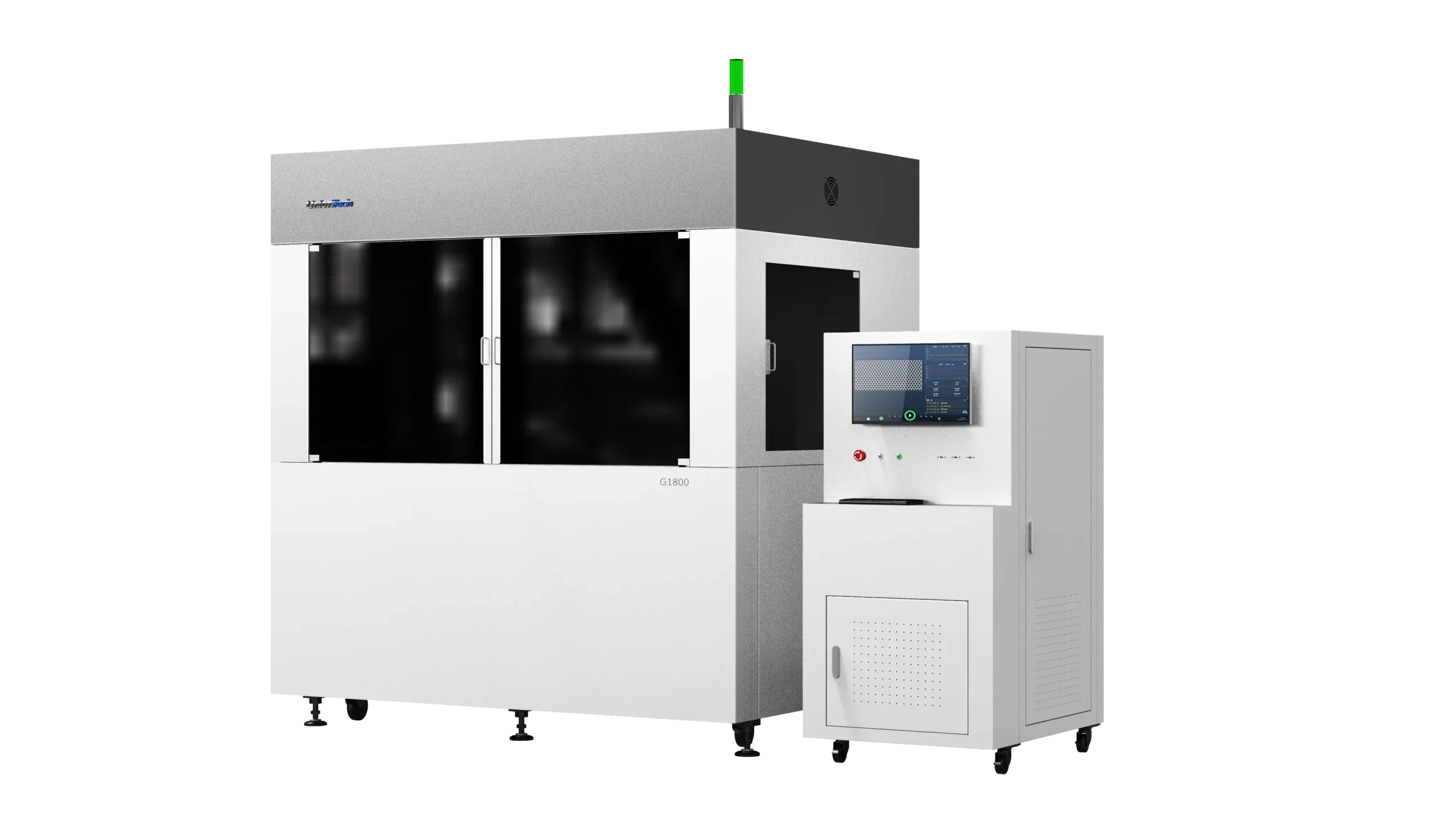

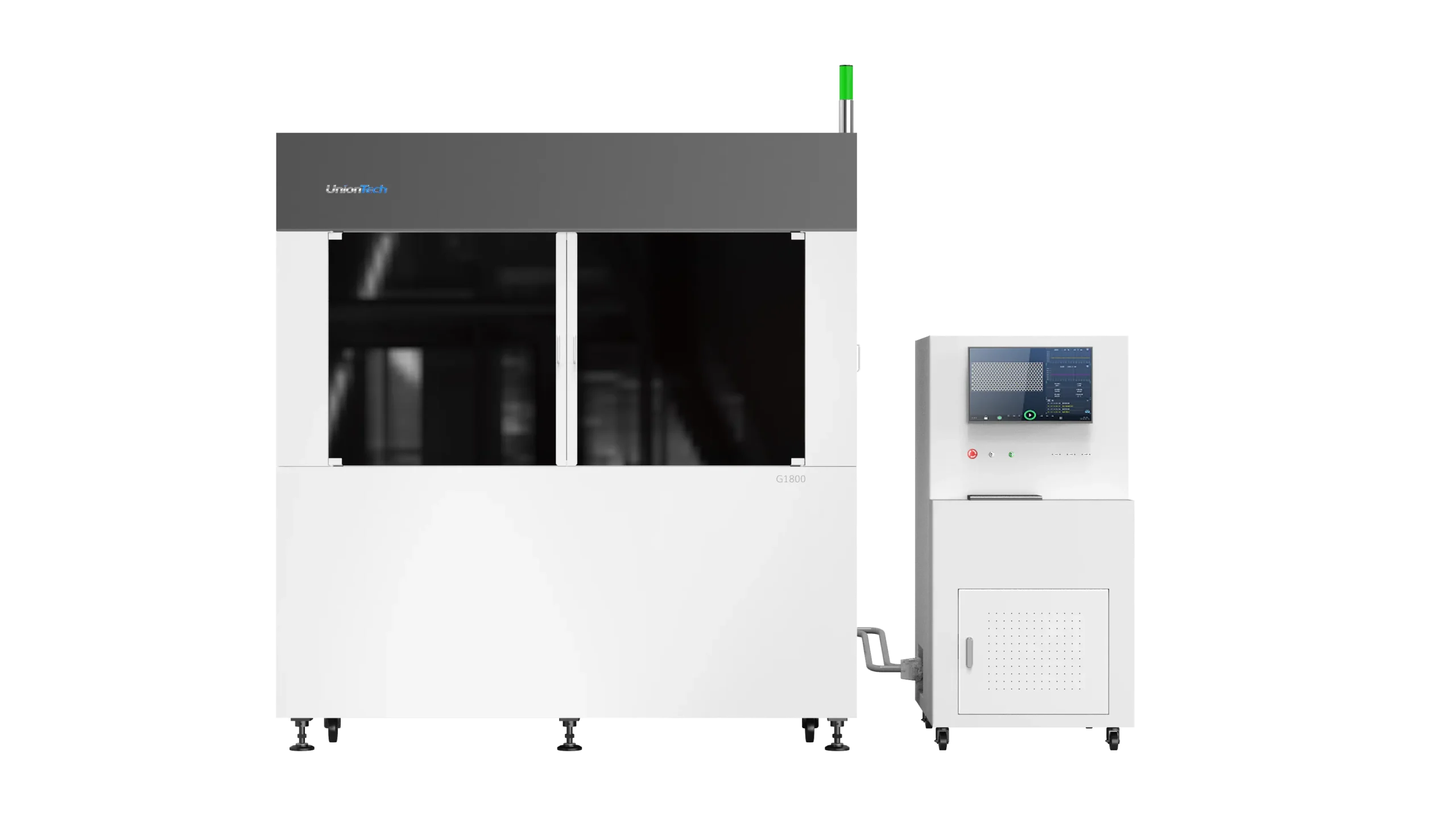

The RSPro1800 is equipped with dual lasers and high-speed scanning capabilities, allowing for the production of large prototypes and small-batch parts. With a length of 1.8 meters and a width of 0.9 meters, it offers a spacious and efficient large-format printing experience.
| Build Volume | 1800 × 900 × 600 mm
70.9 × 35.4 × 23.6 in |
| Accuracy | Dimension <100 mm: ±0.2 mm
Dimension ≥100 mm: ±0.2% x Dimension |
| Layer Thickness | 0.1-0.25 mm |
| Laser | 355 nm, solid-state frequency tripled
Nd: YVO₄ |
| Beam Focus | Dynamic & Variable |
| Beam Size | 0.12-0.85 mm |
| Scanning Speed | 8-15 m/s |
| Control Software | UnionTech™ RSCON |
| Data Interface | .stl |
| Network | Ethernet, IEEE802.3, TCP/IP |
| Rated Power | 4.7 kVA |
| Systems Control | Closed-loop |
| Temperature Range | 22–26 °C (72–79 °F) |
| Relative Humidity | < 40% |
| Resin Vat | Fixed |
| Machine Dimensions | 2305 × 1630 × 2465 mm
90.74 x 64.17 x 97.05 in |
| Machine Weight | 2080 kg |
Consult with your sales representative for confirmation of current offering.
